Industries We Serve
Construction & Infrastructure

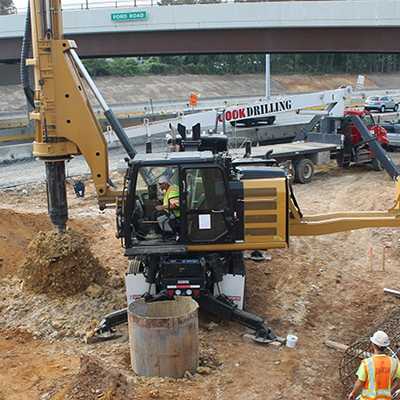

CZM manufactures machines for most types of foundation applications performed in general construction. Kelly bar drilling for Caissons is our main product offered as a Standard Mast, Short Mast, Long Reach and Cable Crowd. We also have models for CFA, Displacement Piles, Soilmixing, Pile Driving, Micropiles, Jet Grouting and Cased CFA.
| Standard Chassis: | CAT 352 Tier IV | |
| Installed Power: | 432 hp | 322 kW |
| Maximum Torque: | 252,000 ft.lbs | 35,000 kg.m |
| Maximum Diameter: | 15 ft | 4,600 mm |
| Standard Drilling Depth: | 157 ft | 48,000 mm |
| Operation Weight: | 217,600 lb | 98,700 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 234,500 ft.lbs | 31,800 kg.m |
| Standard Drilling Depth: | 13 ft | 4,000 mm |
| Maximum Depth: | 157 ft | 48,000 mm |
| Operation Weight: | 190,000 lb | 86,400 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 209,000 ft.lbs | 29,000 kg.m |
| Standard Drilling Depth: | 13 ft | 4,000 mm |
| Maximum Depth: | 130 ft | 39,000 mm |
| Operation Weight: | 165,000 lb | 75,000 kg |
| Standard Chassis: | CAT 336 Tier IV | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 193,360 ft.lbs | 26,700 kg.m |
| Maximum Diameter: | 11 ft | 3,350 mm |
| Standard Drilling Depth: | 130 ft | 39,000 mm |
| Operation Weight: | 138,000 lb | 67,200 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 155,100 ft.lbs | 21,500 kg.m |
| Maximum Diameter: | 10 ft | 3,050 mm |
| Standard Drilling Depth: | 120 ft | 37,000 mm |
| Operation Weight: | 105,000 lb | 47,800 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 101,700 ft.lbs | 14,000 kg.m |
| Maximum Diameter: | 8 ft | 2,440 mm |
| Standard Drilling Depth: | 120 ft | 37,000 mm |
| Operation Weight | 82,500 lb | 37,500 kg |
| Standard Chassis: | CAT 316 Tier IV | |
| Installed Power: | 117 hp | 88 kW |
| Maximum Torque: | 57,000 ft.lbs | 7,900 kg.m |
| Maximum Diameter: | 6 ft 10 in | 1,800 mm |
| Standard Drilling Depth: | 80 ft | 24,400 mm |
| Operation Weight: | 60,000 lb | 27,125 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 432 hp | 322 kW |
| Maximum Torque: | 252,000 ft.lbs | 35,000 kg.m |
| Drilling Diameter: | 12 ft | 3,700 mm |
| Maximum Depth: | 160 ft | 48,650 mm |
| Operation Weight | 230,000 lb | 104,500 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 323 hp | 242 kW |
| Maximum Torque: | 193,230 ft.lbs | 26,200 kg.m |
| Maximum Diameter: | 12 ft | 3,700 mm |
| Standard Drilling Depth: | 130 ft | 39,600 mm |
| Operation Weight | 180,000 lb | 81,800 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 134,300 ft.lbs | 18,620 kg.m |
| Maximum Diameter: | 8 ft | 2,440 mm |
| Standard Drilling Depth: | 120 ft | 36,600 mm |
| Operation Weight | 115,000 lb | 52,250 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 151,100 ft.lbs | 21,500 kg.m |
| Maximum Diameter: | 12 ft | 3,650 mm |
| Standard Drilling Depth: | 53 ft | 16,764 mm |
| Operation Weight | 125,000 lb | 58,500 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 101,400 ft.lbs | 14,060 kg.m |
| Maximum Diameter: | 12 ft | 3,650 mm |
| Standard Drilling Depth: | 55 ft | 16,764 mm |
| Operation Weight | 115,000 lb | 52,270 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 77,530 ft.lbs | 10,750 kg.m |
| Maximum Diameter: | 11 ft | 3,350 mm |
| Standard Drilling Depth: | 60 ft | 18,300 mm |
| Operation Weight | 85,000 lb | 38,600 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 67,150 ft.lbs | 9,310 kg.m |
| Maximum Diameter: | 9 ft | 2,750 mm |
| Standard Drilling Depth: | 60 ft | 18,300 mm |
| Operation Weight | 80,000 lb | 38,300 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 34,000 ft.lbs | 4,700 kg.m |
| Maximum Diameter: | 18 in | 457 mm |
| Operation Weight | 72,500 lb | 33,000 kg |
| Standard Chassis: | CAT 316F | |
| Installed Power: | 117 hp | 88 kW |
| Maximum Torque: | 36,165 ft.lbs | 4,700 kg.m |
| Maximum Diameter: | 20 in | 508 mm |
| Maximum Depth: | 52 ft 6 in | 16,000 mm |
| Transport Weight: | 60,000 lb | 27,215 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Energy per Blow: | 44,000 ft.lbs | 58,800 Nm |
| Max Pile Diameter: | 24 in | 620 mm |
| Pile Length (max): | 60 ft | 18,300 mm |
| Piston Weight: | 11,000 lbs | 5,000 kg |
| Operation Weight | 170,000 lb | 77,110 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Energy per Blow: | 32,000 ft.lbs | 43,386 Nm |
| Max Pile Diameter: | 24 in | 620 mm |
| Pile Length (max): | 50 ft | 15,000 mm |
| Piston Weight: | 8,000 lbs | 3,600 kg |
| Operation Weight | 90,000 lb | 41,000 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 2054 kW |
| Maximum Torque: | 167,340 ft.lbs | 23,200 kg.m |
| Maximum Diameter: | 10 ft | 3,050 mm |
| Maximum Depth: | 60 ft | 18,300 mm |
| Operation Weight | 103,500 lb | 46,950 kg |
| Standard Chassis: | CAT 316 Tier IV | |
| Installed Power: | 117 hp | 88 kW |
| Maximum Torque: | 72,000 ft.lbs | 10,000 kg.m |
| Maximum Diameter: | 6 ft | 1,500 mm |
| Maximum Depth: | 80 ft | 24,500 mm |
| Operation Weight | 93,900 lb | 42,600 kg |
