What We Offer

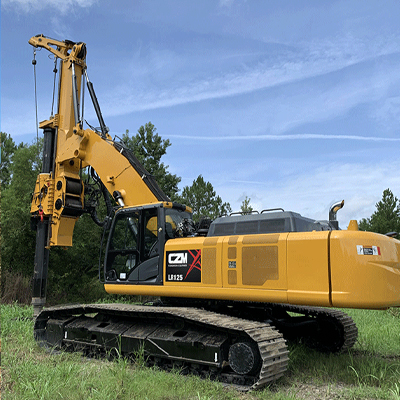

Long Reach Machines

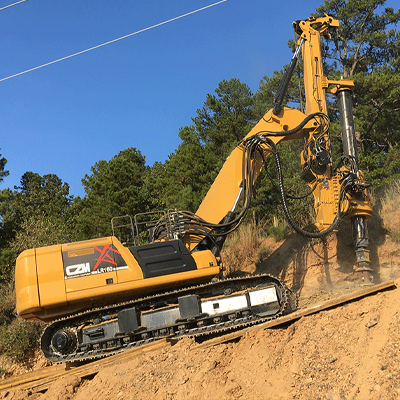

The Long Reach series of machines are equipped with a long boom instead of a kinematics, allowing the contractor to reach out when drilling. Drilling of the side of a highway or on big slopes for transmission lines are prime examples of the applications for these machines. They are equipped with interlocking kelly bars, that allow you to drill even on hard rock. We have a full range of sizes, from an LR65 (75,000 lbs of operation weight) to an LR160 (130,000 lbs of operation weight).
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 151,100 ft.lbs | 21,500 kg.m |
| Maximum Diameter: | 12 ft | 3,650 mm |
| Standard Drilling Depth: | 53 ft | 16,764 mm |
| Operation Weight | 133,000 lb | 60,500 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 101,400 ft.lbs | 14,060 kg.m |
| Maximum Diameter: | 12 ft | 3,650 mm |
| Standard Drilling Depth: | 55 ft | 16,764 mm |
| Operation Weight | 115,000 lb | 52,270 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 77,530 ft.lbs | 10,750 kg.m |
| Maximum Diameter: | 11 ft | 3,350 mm |
| Standard Drilling Depth:: | 60 ft | 18,300 mm |
| Operation Weight | 85,000 lb | 38,600 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 67,150 ft.lbs | 9,310 kg.m |
| Maximum Diameter: | 9 ft | 2,750 mm |
| Standard Drilling Depth:: | 60 ft | 18,300 mm |
| Operation Weight | 80,000 lb | 38,300 kg |
