Pile Driving

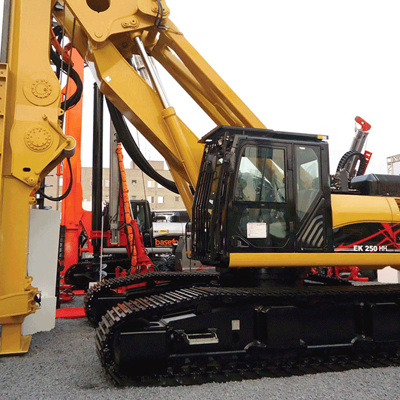

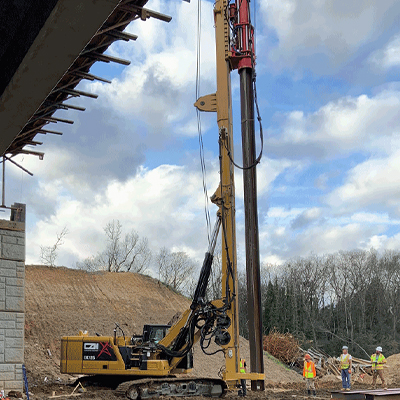

CZM also manufactures pile driving machines with a hydraulic impact hammer. Hydraulic hammers are more effective and eco friendly than diesel and air hammers. With a high frequency and high efficiency you can drive piles faster. It is also a self contained machine, easy to set up, brake down and transport.
| Standard Chassis: | CAT 336 Next Gen | |
| Energy per Blow: | 44,000 ft.lbs | 58,800 Nm |
| Max Pile Diameter: | 24 in | 620 mm |
| Pile Length (max): | 60 ft | 18,300 mm |
| Piston Weight: | 11,000 lbs | 5,000 kg |
| Operation Weight | 170,000 lb | 77,110 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Energy per Blow: | 32,000 ft.lbs | 43,386 Nm |
| Max Pile Diameter: | 24 in | 620 mm |
| Pile Length (max): | 50 ft | 15,000 mm |
| Piston Weight: | 8,000 lbs | 3,600 kg |
| Operation Weight | 90,000 lb | 41,000 kg |
