Cylinder Crowd Machines
CZM manufactures machines for most types of foundation applications performed in general construction. Kelly bar drilling for Caissons is our main product offered as a Standard Mast, Short Mast, Long Reach and Cable Crowd, we also have models for CFA, Displacement Piles, Soilmixing, Pile Driving, Micro piles, Jet Grouting and Cased CFA.

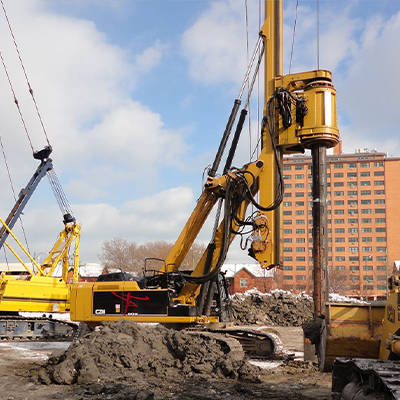

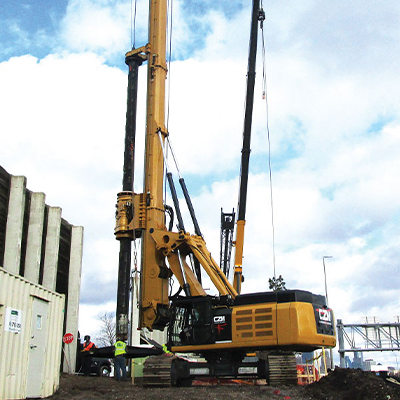

Standard Mast Versions

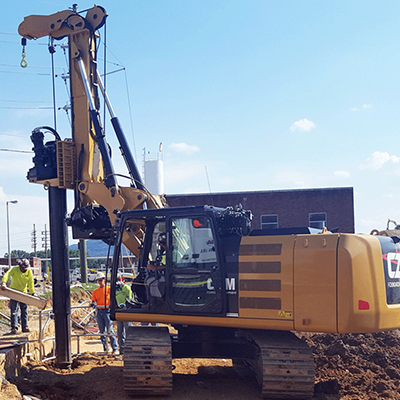

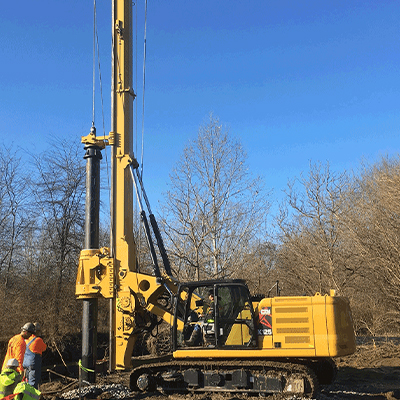

Our standard mast machines are designed for kelly bar drilling with cylinder crowd, with easy conversion from Standard Mast to Short Mast. These machines are build on Caterpillar bases with extendable undercarriages and they vary in size from an EK65 (60,000 lbs operation weight) to a EK300 (217,600 lbs operation weight). From easy soil to hard rock, these machine are ideal for many types of applications.
| Standard Chassis: | CAT 352 Tier IV | |
| Installed Power: | 432 hp | 322 kW |
| Maximum Torque: | 252,000 ft.lbs | 35,000 kg.m |
| Maximum Diameter: | 15 ft | 4,600 mm |
| Standard Drilling Depth: | 157 ft | 48,000 mm |
| Operation Weight: | 217,600 lb | 98,700 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 234,500 ft.lbs | 31,800 kg.m |
| Maximum: | 13 ft | 4,000 mm |
| Standard Drilling Depth: | 157 ft | 48,000 mm |
| Operation Weight: | 190,000 lb | 86,400 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 209,000 ft.lbs | 29,000 kg.m |
| Maximum Diameter: | 13 ft | 4,000 mm |
| Standard Drilling Depth: | 130 ft | 39,000 mm |
| Operation Weight: | 165,000 lb | 75,000 kg |
| Standard Chassis: | CAT 336 Tier IV | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 193,360 ft.lbs | 26,700 kg.m |
| Maximum Diameter: | 11 ft | 3,350 mm |
| Standard Drilling Depth: | 130 ft | 39,000 mm |
| Operation Weight: | 138,000 lb | 67,200 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 155,100 ft.lbs | 21,500 kg.m |
| Maximum Diameter: | 10 ft | 3,050 mm |
| Standard Drilling Depth: | 120 ft | 37,000 mm |
| Operation Weight: | 105,000 lb | 47,800 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 101,700 ft.lbs | 14,000 kg.m |
| Maximum Diameter: | 8 ft | 2,440 mm |
| Standard Drilling Depth: | 120 ft | 37,000 mm |
| Operation Weight | 82,500 lb | 37,500 kg |
| Standard Chassis: | CAT 316 Tier IV | |
| Installed Power: | 117 hp | 88 kW |
| Maximum Torque: | 57,000 ft.lbs | 7,900 kg.m |
| Maximum Diameter: | 6 ft 10 in | 1,800 mm |
| Standard Drilling Depth: | 80 ft | 24,400 mm |
| Operation Weight: | 60,000 lb | 27,125 kg |

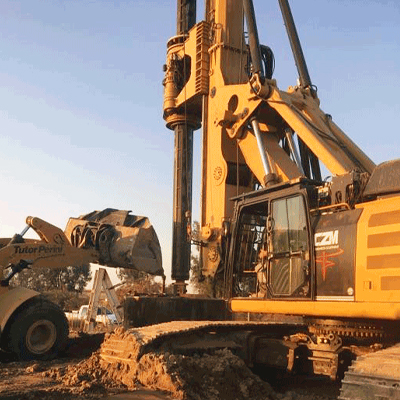

Short Mast Versions

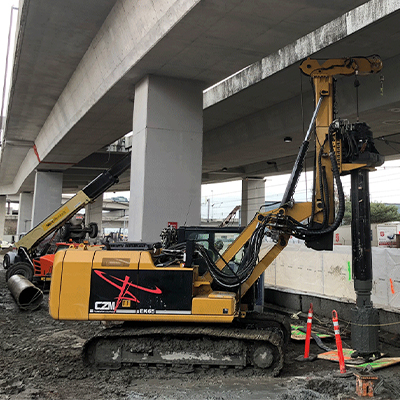

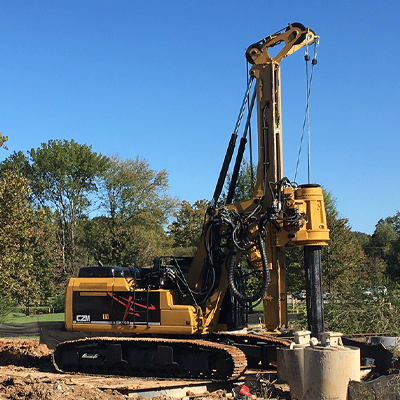

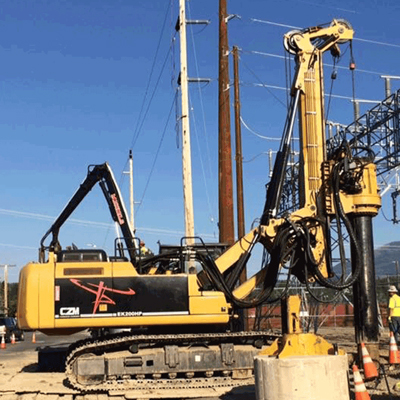

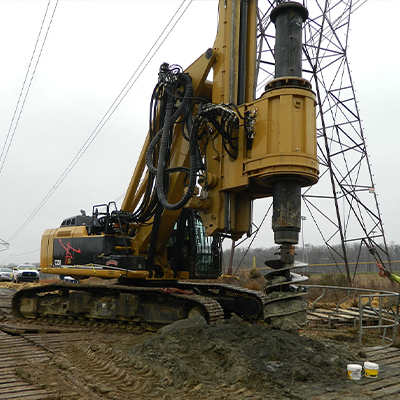

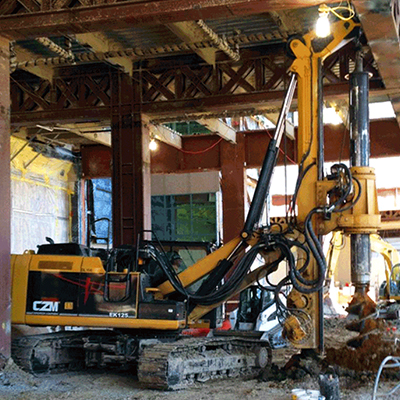

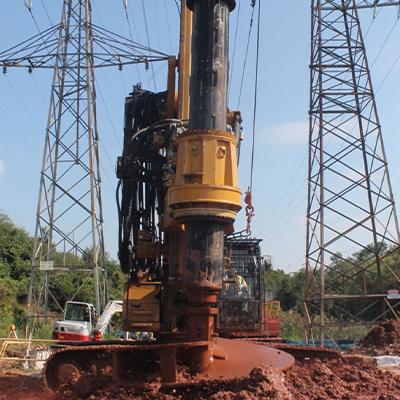

The Short mast version of our kelly bar cylinder crowd machines are ideal for drilling with an overhead restriction. Drilling under power lines, existing bridges on inside a building is possible due to the limited height of the mast. With a large inner passage in the rotary, CZM’s can have interlocking kelly bars with more elements, that allow you to drill deep even on low over headroom.
| Standard Chassis: | CAT 352 Tier IV | |
| Installed Power: | 432 hp | 322 kW |
| Maximum Torque: | 252,000 ft.lbs | 35,000 kg.m |
| Maximum Diameter: | 15 ft | 4,600 mm |
| Standard Drilling Depth: | 60 ft | 18,300 mm |
| Operation Weight: | 199,900 lb | 90,700 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 234,500 ft.lbs | 31,800 kg.m |
| Maximum Diameter: | 13 ft | 4,000 mm |
| Standard Drilling Depth: | 72 ft | 22,000 mm |
| Operation Weight: | 172,000 lb | 78,200 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 209,000 ft.lbs | 29,000 kg.m |
| Maximum Diameter: | 13 ft | 4,000 mm |
| Standard Drilling Depth: | 76 ft | 23,200 mm |
| Operation Weight: | 153,000 lb | 69,550 kg |
| Standard Chassis: | CAT 336 Tier IV | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 193,360 ft.lbs | 26,700 kg.m |
| Maximum Diameter: | 11 ft | 3,350 mm |
| Standard Drilling Depth: | 76 ft | 23,200 mm |
| Operation Weight: | 127,000 lb | 57,800 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 155,100 ft.lbs | 21,500 kg.m |
| Maximum Diameter: | 10 ft | 3,050 mm |
| Standard Drilling Depth: | 45 ft | 13,700 mm |
| Operation Weight | 94,000 lb | 41,400 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 101,700 ft.lbs | 14,000 kg.m |
| Maximum Diameter: | 8 ft | 2,440 mm |
| Standard Drilling Depth: | 55 ft | 16,700 mm |
| Operation Weight | 74,500 lb | 33,850 kg |
| Standard Chassis: | CAT 316 Tier IV | |
| Installed Power: | 117 hp | 88 kW |
| Maximum Torque: | 57,000 ft.lbs | 7,900 kg.m |
| Maximum Diameter: | 10 ft | 1,800 mm |
| Standard Drilling Depth: | 41 ft | 12,000 mm |
| Operation Weight: | 60,000 lb | 27,125 kg |
