Industries We Serve
Utility

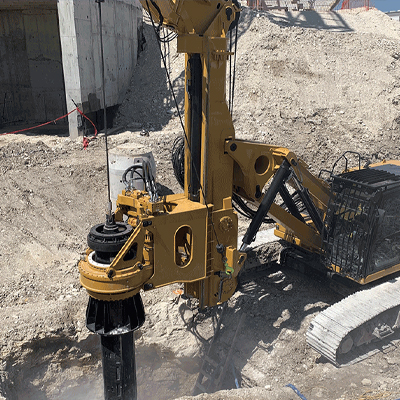

We offer a line of smaller machines, with long reach that are ideal for drilling on the Utility sector. Drilling on soft soils or rock, we have the right machine that will get your job done.
| Standard Chassis: | CAT 316 Tier IV | |
| Installed Power: | 117 hp | 88 kW |
| Maximum Torque: | 57,000 ft.lbs | 7,900 kg.m |
| Maximum Diameter: | 10 ft | 1,800 mm |
| Standard Drilling Depth: | 41 ft | 12,000 mm |
| Operation Weight: | 60,000 lb | 27,125 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 101,700 ft.lbs | 14,000 kg.m |
| Maximum Diameter: | 8 ft | 2,440 mm |
| Standard Drilling Depth: | 55 ft | 16,700 mm |
| Operation Weight | 74,500 lb | 33,850 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 155,100 ft.lbs | 21,500 kg.m |
| Maximum Diameter: | 10 ft | 3,050 mm |
| Standard Drilling Depth: | 45 ft | 13,700 mm |
| Operation Weight | 94,000 lb | 41,400 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 2054 kW |
| Maximum Torque: | 167,340 ft.lbs | 23,200 kg.m |
| Maximum Diameter: | 10 ft | 3,050 mm |
| Standard Drilling Depth: | 60 ft | 18,300 mm |
| Operation Weight | 103,500 lb | 46,950 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 151,100 ft.lbs | 21,500 kg.m |
| Maximum Diameter: | 12 ft | 3,650 mm |
| Standard Drilling Depth: | 53 ft | 16,764 mm |
| Operation Weight | 125,000 lb | 58,500 kg |
| Standard Chassis: | CAT 336 Next Gen | |
| Installed Power: | 314 hp | 234 kW |
| Maximum Torque: | 101,400 ft.lbs | 14,060 kg.m |
| Maximum Diameter: | 12 ft | 3,650 mm |
| Standard Drilling Depth: | 55 ft | 16,764 mm |
| Operation Weight | 115,000 lb | 52,270 kg |
| Standard Chassis: | CAT 330 Next Gen | |
| Installed Power: | 275 hp | 205 kW |
| Maximum Torque: | 77,530 ft.lbs | 10,750 kg.m |
| Maximum Diameter: | 11 ft | 3,350 mm |
| Standard Drilling Depth: | 60 ft | 18,300 mm |
| Operation Weight | 85,000 lb | 38,600 kg |
| Standard Chassis: | CAT 323 Next Gen | |
| Installed Power: | 164 hp | 122 kW |
| Maximum Torque: | 67,150 ft.lbs | 9,310 kg.m |
| Maximum Diameter: | 9 ft | 2,750 mm |
| Standard Drilling Depth: | 60 ft | 18,300 mm |
| Operation Weight | 80,000 lb | 38,300 kg |
